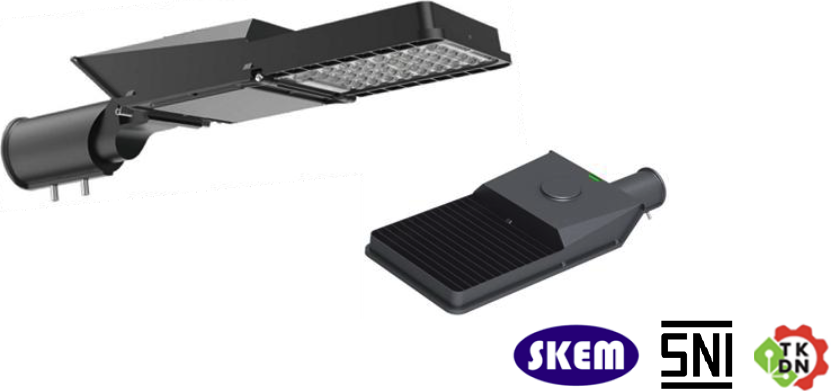

ATS-SL-GS/GM/GL
ATS-SL-Gx is a lineup of compact, economic and efficient LED Street Light. They offer significantly lower operating costs and installation costs.
ATS-SL-Gx is a lineup of compact, economic and efficient LED Street Light. They offer significantly lower operating costs and installation costs.
| Model | GS | GM | GL |
|---|---|---|---|
| Input Voltage | AC 220V 50Hz | ||
| Power | 40W - 80W | 90W - 130W | 140W - 210W |
| Luminous Efficacy | >140 lm/W | ||
| Luminous Flux | 5600 lm - 11200 lm | 12600 lm - 18200 lm | 19600 lm - 29400lm |
| CCT | 2700K / 3000K / 4000K / 5000K / 57000K / 6000K | ||
| CRI | 70-80 | ||
| Housing Material | Die-casting Alumunium | ||
| IP / IK | IP66 / IK08 | ||
| Dimension (±4mm) /mm | 506 x 185 x 102 | 558 x 225 x 102 | 639 x 260 x 112 |
| Packaging (±5mm) /mm | 565 x 245 x 180 | 620 x 285 x 190 | 700 x 320 x 200 |
| Net Weight (±0.3kg)/kg | 2.7 | 3.7 | 4.9 |
| Gros Weight (±0.3kg) /kg | 3.5 | 4.6 | 5.9 |

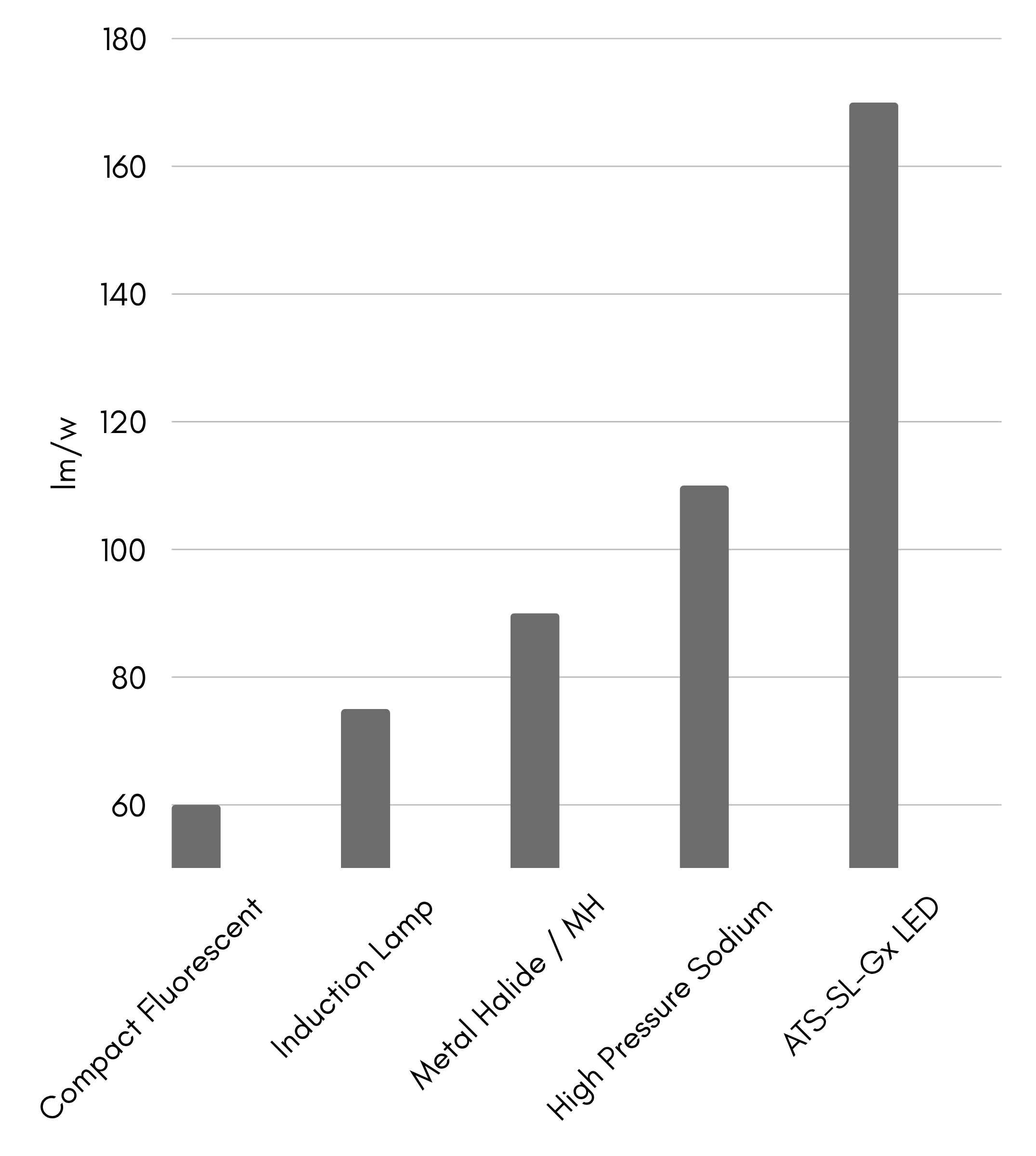

ATS-SL-Gx lineup uses high quality, premium LED chips, drivers, housing and auxiliary components. The smart combination of components allows ATS-SL-Gx series lights to achieve a luminous efficacy of up to 170 lumens per watt.
