ATS-SSL Series

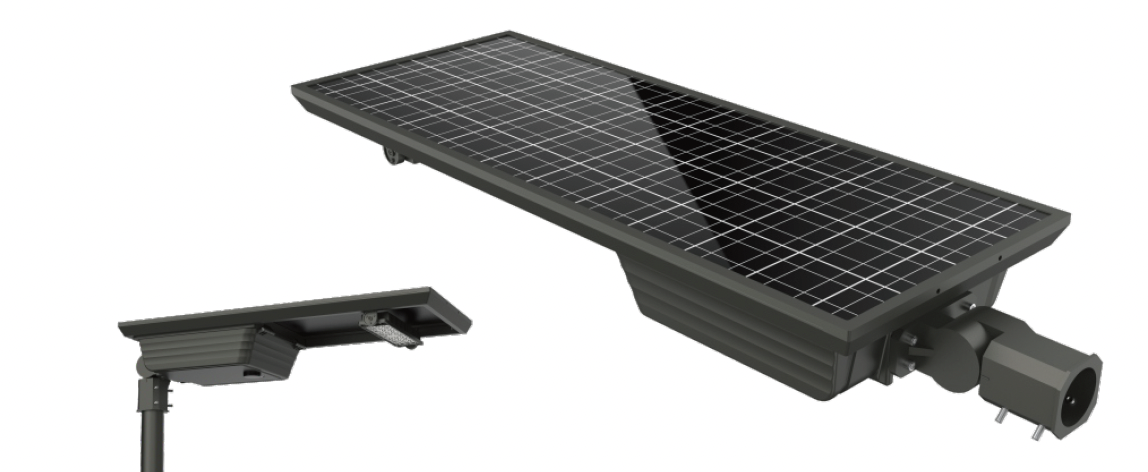

ATS-SSL is a lineup of sleek, economic and efficient all-in-one Solar Street Light. They offer significantly lower operating costs, installation costs and faster economic returns.
ATS-SSL is a lineup of sleek, economic and efficient all-in-one Solar Street Light. They offer significantly lower operating costs, installation costs and faster economic returns.
ATS-SSL lineup uses high grade, premium LED chips, drivers, charge controllers, housing and auxiliary components. The selection of components allows ATS-SSL series lights to achieve an impressive luminous efficacy of up to 200 lumens per watt.
| Model | SSL-20 | SSL-30 | SSL-40 | SSL-50 | SSL-60 | SSL-80 | SSL-90 |
|---|---|---|---|---|---|---|---|
| System Voltage | DC 12V | DC 24V | |||||
| Power | 20W | 30W | 40W | 50W | 60W | 80W | 90W |
| Luminous Efficacy | Up to 200lm/W | ||||||
| Luminous Flux | 4000 lm | 6000 lm | 8000 lm | 10000 lm | 12000 lm | 16000 lm | 18000 lm |
| CCT | 3000K / 4000K / 57000K / 6500K | ||||||
| CRI | 70 | ||||||
| Housing Material | Die-casting Alumunium (housing) + Extruded Alumunium (frame) + PC | ||||||
| IP / IK | IP66 / IK08 | ||||||
